After a jump, two instructions following the jump will normally be executed. Added Junction Temperature Specification for Lead.

Multiple stages require multiple circular buffers for the fastest operation. How to order your own hardcover copy Wouldn't you rather have a bound book instead of loose pages?

Super Harvard Architecture

Code and data are normally fetched from on-chip memory, which the user must split into regions of different word sizes as desired. In the jargon of the field, this efficient transfer of data is called a high memory-access bandwidth. Qualified for automotive applications. Why so many circular buffers?

Book Search

If it was new and exciting, Von Neumann was there! Operating systems may use overlays to work around this problem, transferring bit data to on-chip memory as needed for execution. The overriding goal is to move the data in, perform the math, and move the data out before the next sample is available. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

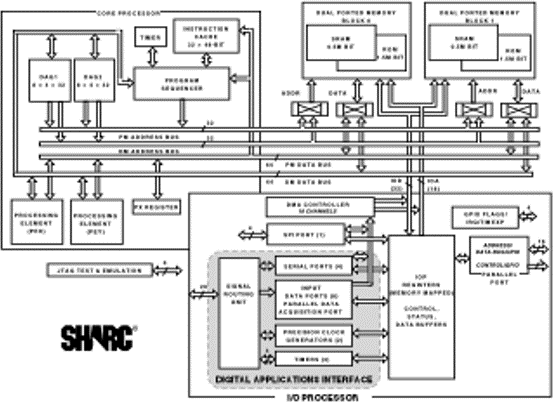

SHARC Processor Architectural Overview

SHARC Processor Architectural Overview

Navigation menu

This results in slower operation because of the conflict with the coefficients that must also be fetched along this path. If the off-chip memory is configured as bit words to avoid waste, then only the on-chip memory may be used for code execution and extended floating-point.

Part Number Start WithDownload this chapter in PDF format

Download this chapter in PDF format

Your laser printer will thank you! Specifications subject to change without notice. The word size is bit for instructions, bit for integers and normal floating-point, and bit for extended floating-point.

In fact, if we were executing random instructions, this situation would be no better at all. No license is granted by implication. Not to be confused with SuperH.

However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. However, on additional executions of the loop, the program instructions can be pulled from the instruction cache. These are extremely high speed connections.

When two numbers are multiplied, two binary values the numbers must be passed over the data memory bus, while only one binary value the program instruction is passed over the program memory bus. This memory can only be configured for one single size. The main buses program memory bus and data memory bus are also accessible from outside the chip, providing an additional interface to off-chip memory and peripherals. For complete ordering information, see Ordering Guide on.

Figure a shows how this seemingly simple task is done in a traditional microprocessor. When an interrupt occurs in traditional microprocessors, all the internal data must be saved before the interrupt can be handled. In simpler microprocessors this task is handled as an inherent part of the program sequencer, and is quite transparent to the programmer. Now we come to the critical performance of the architecture, acometida electrica domiciliaria pdf how many of the operations within the loop steps of Table can be carried out at the same time.

Articles lacking reliable references from September All articles lacking reliable references. There are two delay slots. If the loop is executed more than a few times, this overhead will be negligible. This article relies too much on references to primary sources. These control the addresses sent to the program and data memories, specifying where the information is to be read from or written to.

Everything else is secondary. Small data types may be stored in wider memory, simply wasting the extra space. To do this, we must fetch three binary values from memory, the numbers to be multiplied, plus the program instruction describing what to do. Instructions without this operand are generally able to perform two or more operations simultaneously.

The first time through a loop, the program instructions must be passed over the program memory bus. Languages Deutsch Edit links. However, no responsibility is assumed by Analog Devices for its use, nor for any. For example, suppose we need to multiply two numbers that reside somewhere in memory. You can expect it to require about to clock cycles per sample to execute i.

Figure c illustrates the next level of sophistication, the Super Harvard Architecture. We only need other architectures when very fast processing is required, and we are willing to pay the price of increased complexity. Von Neumann guided the mathematics of many important discoveries of the early twentieth century.
